Description

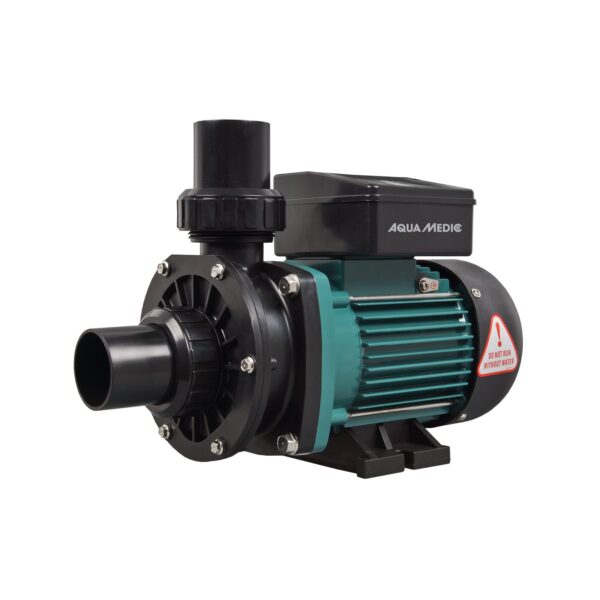

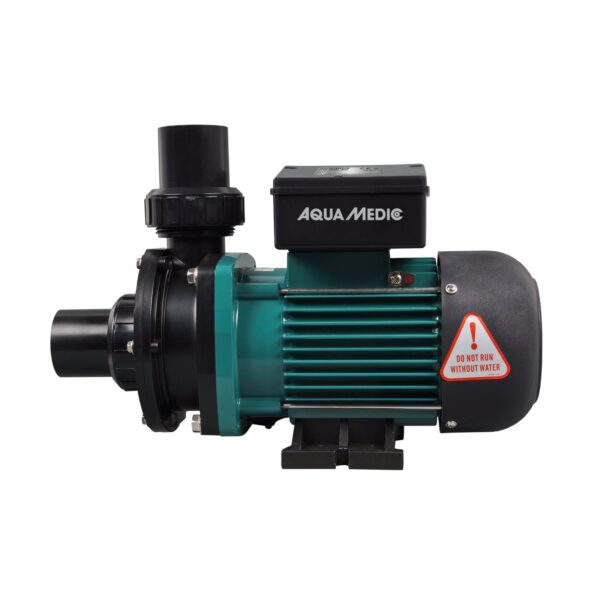

Circulation pump AM PRO 50, 75, 100
The circulation pumps in the AM PRO series are powerful with high performance. They have low energy consumption and operate at a low decibel volume. Minimal maintenance is necessary. The AM PRO pumps have a plastic housing. The axle is sealed with a mechanical seal. The pumps must be dry mounted.
Features:
- Asynchronous, two-pole motor
- Protection type IP X5
- Integrated overload protection
- Highly effective cooling element for optimal heat dissipation
- Not self-extracting
| Type | AM PRO 50 |
AM PRO 75 |
AM PRO 100 |
| Power (KW) app. | 0.55 | 0.75 | 0.90 |
| Power (PS) app. | 0.50 | 0.75 | 1.00 |
| Power consumption (A) app. | 2.5 | 3.5 | 4.7 |
| Power supply | 220-230 V / 50 Hz | ||
| Protection class | IP X5 | ||
| Sound level (dB) app. | 60 | 60 | 65 |
| Connections suction and pressure side | 1.5"/50 mm | 1.5"/50 mm | 1.5"/50 mm |
| Weight (kg) app. | 7.3 | 8.2 | 9.1 |

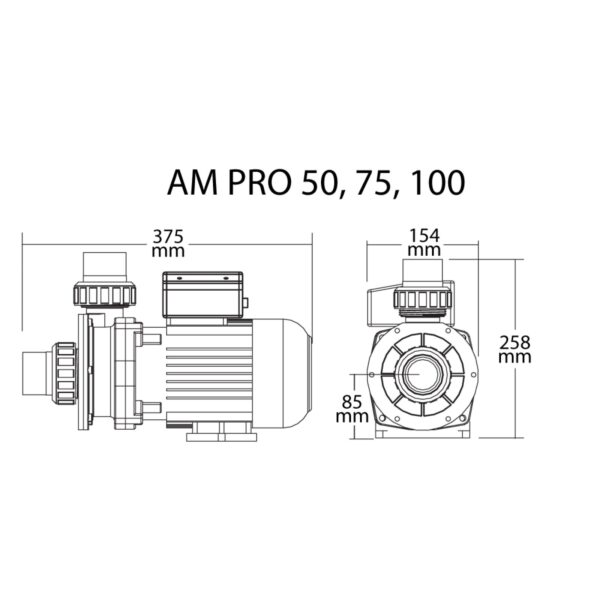

| Dimensions (l x w x h) mm, app. | 375 x 154 x 258 | ||

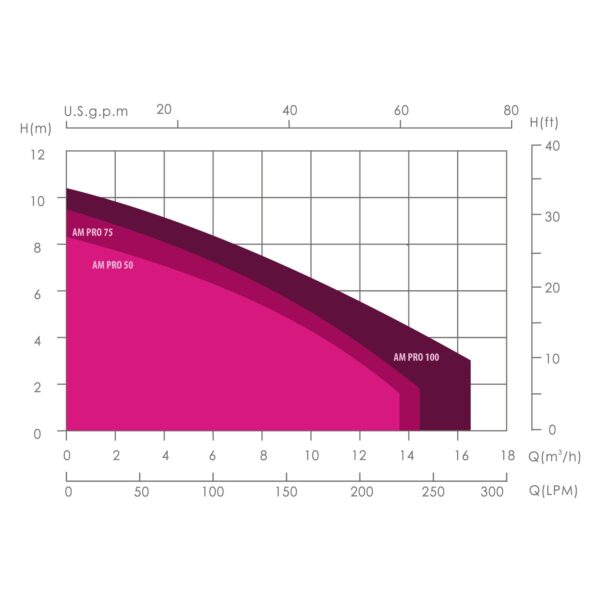

| Flow rate | |||
| m3/h at 2 m pumping head | 13.2 | 14.4 | 17.0 |
| m3/h at 4 m pumping head | 10.3 | 11.3 | 13.6 |
| m3/h at 6 m pumping head | 6.6 | 8.6 | 9.8 |
| m3/h at 8 m pumping head | 1.0 | 4.0 | 5.1 |
A motor protection switch is necessary for the operation of the pump.
The guarantee is void if the pump is used without a motor protection switch.
